Authelia

This guide walks you through setting up Authelia as an OIDC provider for Grimmory. Authelia is a popular self-hosted authentication server that provides SSO and multi-factor authentication for your reverse proxy setup. If you’re already using Authelia to protect your services behind Traefik, Caddy, or nginx, adding Grimmory as an OIDC client is straightforward.

By the end of this guide, your users will be able to sign in to Grimmory with their Authelia account. The setup takes about 5 minutes.

Already have OIDC working?

This guide covers the initial setup. For details on user provisioning, group mapping, OIDC-Only Mode, and other advanced features, see the OIDC Settings reference.

---

Part 1: Add Grimmory as an OIDC Client in Authelia

Authelia’s OIDC configuration lives in its YAML config file. Add a client entry for Grimmory under identity_providers.oidc.clients.

Here’s a complete working configuration. Replace grimmory.example.com with your actual Grimmory domain and auth.example.com with your Authelia domain:

identity_providers:
  oidc:
    clients:
      - client_name: Grimmory
        client_id: # generate this: https://www.authelia.com/integration/openid-connect/frequently-asked-questions/#how-do-i-generate-a-client-identifier-or-client-secret
        client_secret: # generate this: https://www.authelia.com/integration/openid-connect/frequently-asked-questions/#how-do-i-generate-a-client-identifier-or-client-secret
        authorization_policy: two_factor
        require_pkce: true
        pkce_challenge_method: S256
        scopes:
          - openid
          - profile
          - email
          - groups
          - offline_access
        redirect_uris:
          - https://your-grimmory-domain.com/oauth2-callback

What Each Section Does

authorization_policy: two_factor requires 2FA. Change to one_factor if you don’t use MFA, or adjust based on your security needs.

scopes must include groups if you want to use Grimmory’s Group Mapping feature. Without it, Authelia won’t include group memberships in the token.

Don’t forget the groups scope

If you plan to use group mapping, you must include groups in both the scopes list and the claims_policy. Without it, Authelia won’t send group information to Grimmory, and group mapping will silently do nothing.

Restart Authelia after saving the config.

---

Part 2: Configure Grimmory

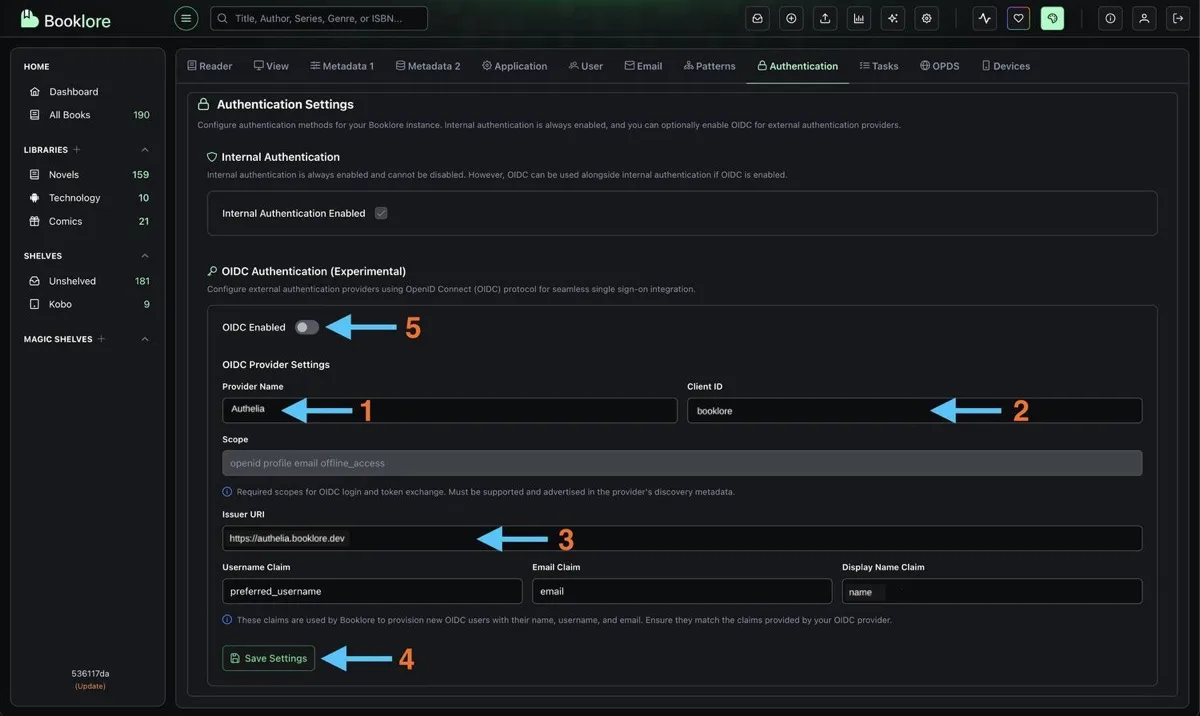

Navigate to Settings > OIDC in Grimmory.

Fill in the provider configuration:

Field	Value
Provider Name	Authelia (shown on the login button)
Client ID	Whatever you set as client_id in the Authelia config
Client Secret	The client secret you generated and used in the Authelia config
Issuer URI	Your Authelia URL without a trailing slash (e.g., https://auth.example.com)

No trailing slash on the Issuer URI

Authelia’s issuer does not use a trailing slash, unlike Authentik. Using https://auth.example.com/ (with slash) will cause discovery to fail. Use https://auth.example.com (without slash).

The default claim mappings work with Authelia:

Claim	Value
Username	preferred_username
Email	email
Display Name	name
Groups	groups

Click Test Connection to verify Grimmory can reach Authelia. All checks should pass.

Click Save, then toggle OIDC Login to ON in the Login Methods section.

Back-Channel Logout

Authelia does not currently support back-channel logout, so it cannot be used.

---

Test It

Open an incognito/private browser window and navigate to your Grimmory instance. Click “Sign in with Authelia”. You’ll be redirected to Authelia’s login page.

After authenticating (including 2FA if configured), you should be redirected back to Grimmory and logged in.

Verify that your username and email are correct.

---

What’s Next

Now that basic OIDC is working, you can configure additional features in Grimmory’s OIDC Settings:

• User Provisioning: Automatically create Grimmory accounts when users sign in for the first time
• Group Mapping: Map Authelia groups to Grimmory permissions and library access (make sure you included groups in the scopes and claims policy)
• OIDC-Only Mode: Hide the local login form and redirect everyone to Authelia
• Account Linking: Migrate existing local users to OIDC without losing their data

---

Troubleshooting

Test Connection Fails

• The Issuer URI must not have a trailing slash. Use https://auth.example.com, not https://auth.example.com/.
• Make sure Grimmory’s server can reach Authelia. If both run in Docker, they need to be on the same network or the external URL must be reachable.
• Check that Authelia restarted successfully after your config change. A YAML syntax error can prevent the OIDC provider from starting.

Login Redirects But Fails

• The redirect URI in Authelia’s config must match exactly: https://your-grimmory-domain.com/oauth2-callback
• Check Authelia’s logs for a detailed error message.

”User Not Provisioned” Error

Auto-provisioning is off by default. Either enable it in OIDC Settings, or create a Grimmory user with a username that exactly matches the Authelia username (case-sensitive).

Group Mapping Not Working

• Make sure groups is in the scopes list in Authelia’s config.
• Verify the Groups Claim in Grimmory is set to groups.
• Check that Group Sync Mode in Grimmory is not set to Disabled.
• The group names must match exactly (case-sensitive) between Authelia and Grimmory’s group mappings.

2FA Prompt Every Time

This is controlled by Authelia’s authorization_policy. If you set it to two_factor, users authenticate with 2FA. Change to one_factor if you don’t want MFA for Grimmory.

Can’t Access Grimmory At All

• Admin backdoor: /login?local=true
• Nuclear option: set FORCE_DISABLE_OIDC=true as an environment variable and restart

---

Additional Resources

• Authelia OpenID Connect Documentation
• Authelia OIDC Client Configuration
• Grimmory OIDC Settings Reference
