OIDC Settings

OpenID Connect (OIDC) lets your users sign in to Grimmory with the same account they use for all your other self-hosted apps. Instead of managing separate passwords, you delegate authentication to a central identity provider like Authentik, Keycloak, Authelia, or Pocket ID. Users click one button, authenticate once, and they’re in.

Grimmory’s OIDC implementation handles the entire token exchange on the server side using the Authorization Code flow with PKCE, so secrets never touch the browser. It also supports back-channel logout, automatic user provisioning, and group-based permission mapping, giving you a complete SSO solution that scales from a single household to a busy shared server.

Looking for provider-specific setup?

This page is a comprehensive reference for all OIDC settings. If you want a step-by-step walkthrough for a specific provider, start with one of these guides instead:

• Authentik
• Pocket ID
• Authelia

The concepts on this page apply to any OIDC-compliant provider.

---

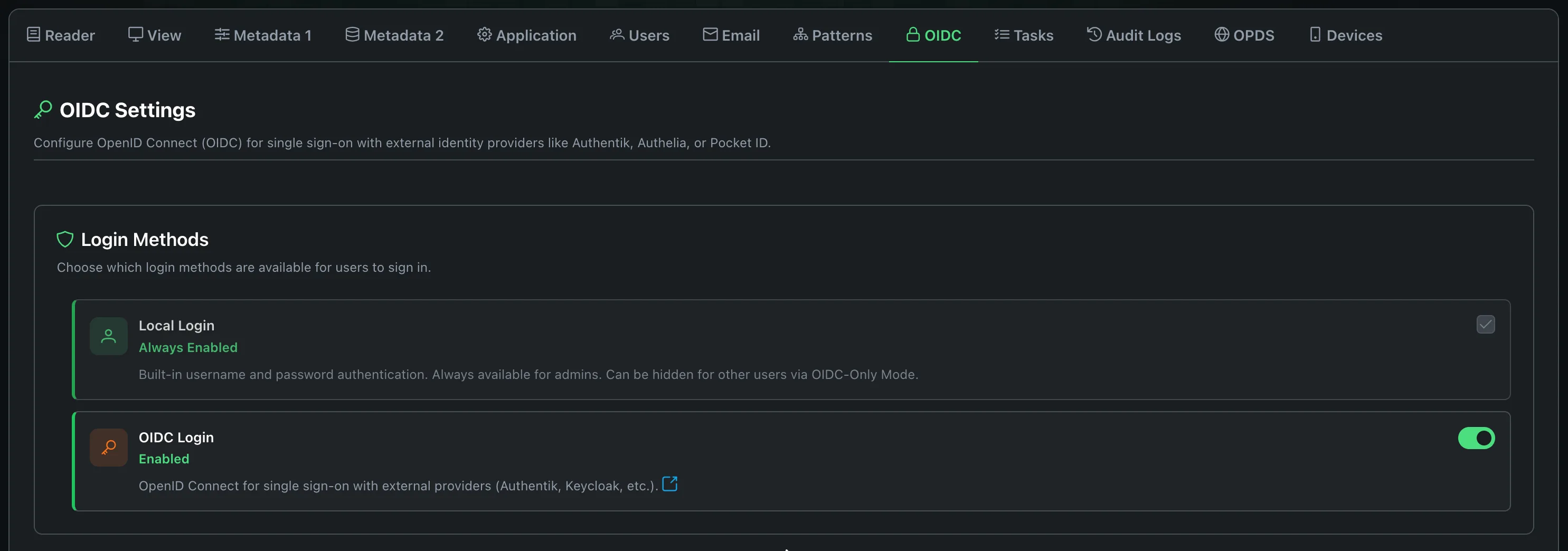

Login Methods

The OIDC settings page starts with a simple choice: which login methods should be available?

Local Login is the built-in username/password system. It’s always on and cannot be fully disabled. Even if you switch entirely to OIDC, admins can still reach the local login form as a safety net (more on that in OIDC-Only Mode).

OIDC Login enables the “Sign in with <Provider>” button on the login page. Toggle this on once you’ve completed the provider configuration below.

You can run both methods side by side. Users who have both a local password and an OIDC identity can use either one. This is useful during a migration period or if some users prefer not to use SSO.

---

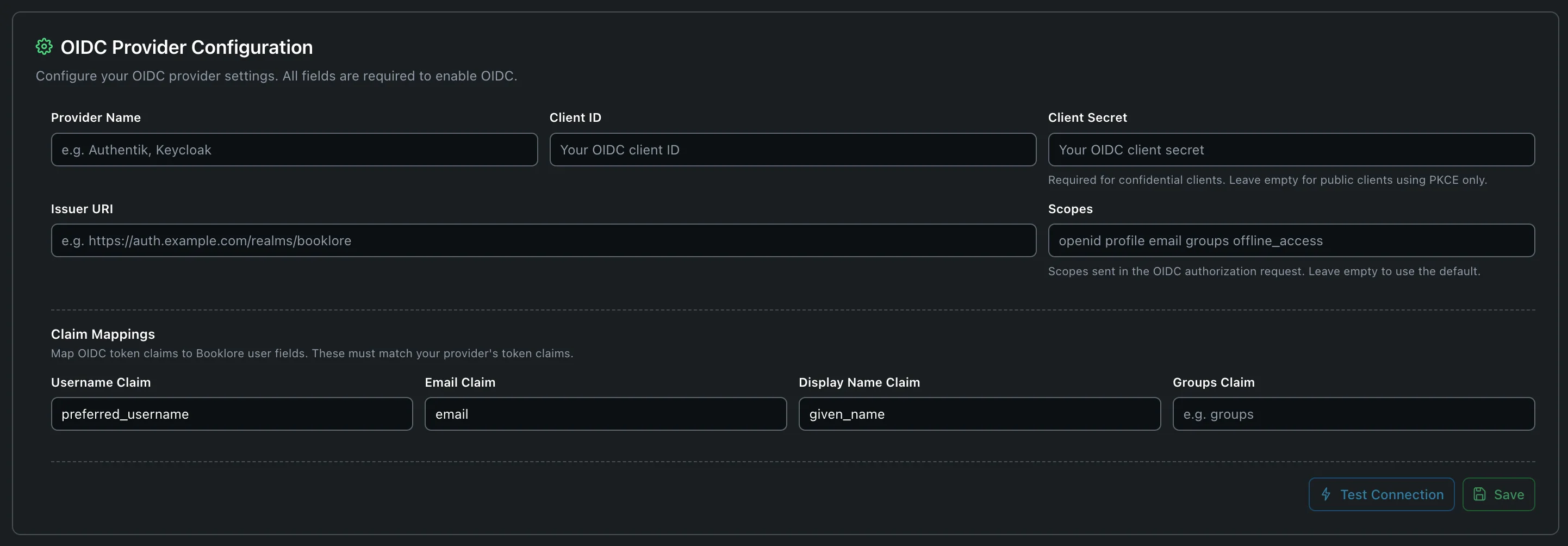

Provider Configuration

This is where you connect Grimmory to your identity provider. You’ll need to create a client/application in your provider first (the provider-specific guides walk through this), then enter the credentials here.

Connection Settings

Field	What to enter	Notes
Provider Name	A human-readable name like Authentik or My SSO	Shown on the login button. Users see “Sign in with <this name>”.
Client ID	The client/application ID from your provider	Copy this exactly from your provider’s dashboard.
Client Secret	The client secret, if your provider requires one	Leave empty for public clients (most common for self-hosted setups using PKCE). Only needed for confidential clients.
Issuer URI	Your provider’s OIDC issuer URL	Grimmory appends /.well-known/openid-configuration to this URL to auto-discover all endpoints.
Scopes	Space-separated list of OIDC scopes	Defaults to openid profile email groups offline_access if left empty. For Microsoft Entra ID, use openid profile email offline_access (without groups).
Session Duration	How long OIDC sessions last (in hours)	Leave on “System default” unless you want OIDC sessions to differ from local ones.

Public vs. Confidential Clients

Most self-hosted identity providers work perfectly with public clients + PKCE, which is the more secure modern approach for browser-based apps. You don’t need a client secret for this.

Use a confidential client (with a secret) only if your provider requires it or your security policy mandates it. Grimmory supports both.

Finding Your Issuer URI

The issuer URI varies by provider. Here are common patterns:

Provider	Issuer URI Pattern
Authentik	https://auth.example.com/application/o/<app-slug>/
Keycloak	https://keycloak.example.com/realms/<realm-name>
Authelia	https://auth.example.com
Pocket ID	https://pocket-id.example.com

Claim Mappings

OIDC providers send user information as “claims” inside tokens. Different providers use different claim names for the same data. Claim mappings tell Grimmory which claim to read for each user field.

Grimmory Field	Default Claim	What it does
Username	preferred_username	Becomes the Grimmory username. This is what users see in the app, and it’s how Grimmory matches returning OIDC users to existing accounts.
Email	email	The user’s email address. Used for notifications and email-to-device features.
Display Name	name	Shown in the UI as the user’s name. Falls back to the username if not provided.
Groups	groups	A list of group names from the provider. Used for Group Mapping to automatically assign permissions.

Username Matching is Case-Sensitive

If your provider sends JohnDoe but the Grimmory account is johndoe, the login will fail. Make sure usernames match exactly. When in doubt, use the preferred_username claim, which most providers set to a lowercase value.

Common Claim Names by Provider

Not sure what claim names your provider uses? Here’s a quick reference:

Provider	Username	Email	Display Name	Groups
Authentik	preferred_username	email	name	groups
Keycloak	preferred_username	email	name	groups (requires mapper)
Authelia	preferred_username	email	name	groups
Pocket ID	preferred_username	email	name	groups

Test Connection

Before saving, click Test Connection to make sure Grimmory can talk to your provider. The test runs a series of checks:

• Discovery document reachable
• Authorization, token, and JWKS endpoints present
• Signing keys fetchable
• Required scopes (openid, profile, email) supported
• PKCE (S256) supported
• End session endpoint available (needed for single logout)
• Back-channel logout supported

Checks that pass show a green checkmark. Warnings (yellow) mean the feature will work but some optional capability isn’t available. Failures (red) must be fixed before OIDC will work.

---

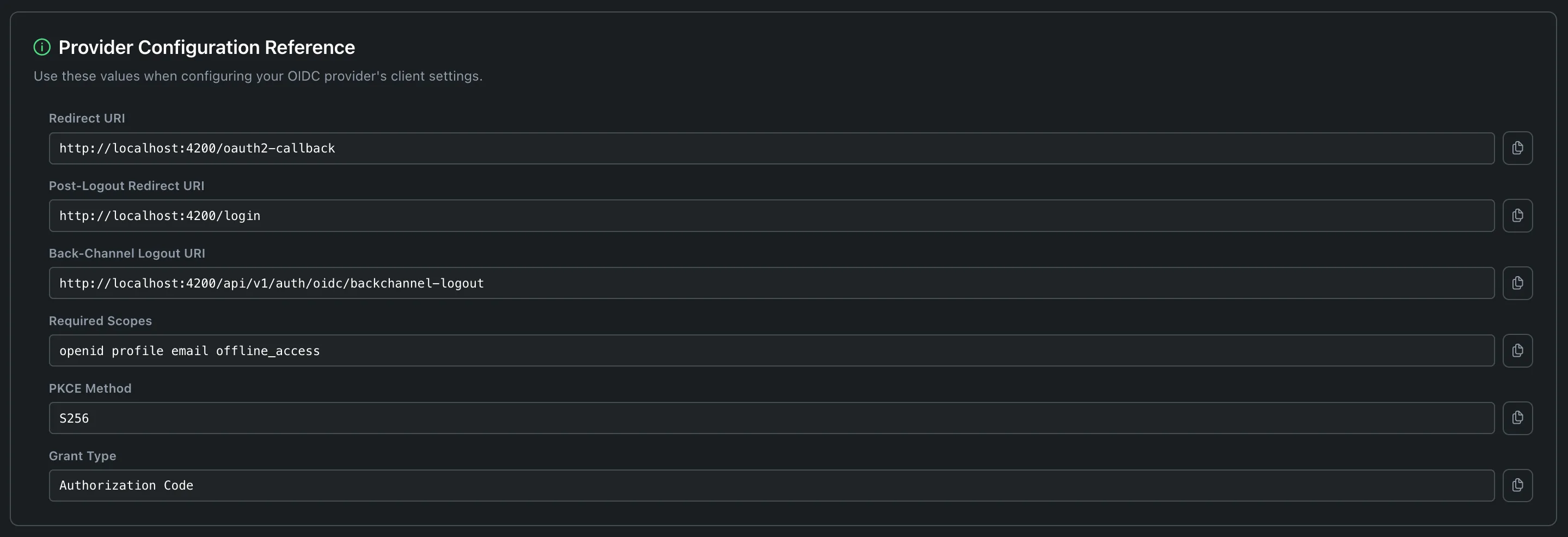

Provider Configuration Reference

Once you save your provider configuration, Grimmory shows a reference panel with the exact values you need to paste into your identity provider’s client settings. Each value has a copy button.

These values are auto-generated based on your Grimmory instance URL. You don’t need to edit them; just copy them into your provider.

Value	Where to put it in your provider	Example
Redirect URI	Allowed redirect URIs / Callback URL	https://books.example.com/oauth2-callback
Post-Logout Redirect URI	Post-logout redirect URIs	https://books.example.com/login
Back-Channel Logout URI	Back-channel logout URL	https://books.example.com/api/v1/auth/oidc/backchannel-logout
Required Scopes	Allowed/assigned scopes	openid profile email offline_access
PKCE Method	PKCE code challenge method	S256
Grant Type	Allowed grant types	Authorization Code

What is Back-Channel Logout?

When a user logs out from your identity provider (for example, clicking “Log out” in Authentik), back-channel logout tells Grimmory to immediately end that user’s session. Without it, the user would stay logged in to Grimmory until their token expires, even though they’ve already logged out everywhere else.

This is a server-to-server call, so the Back-Channel Logout URI must be reachable from your provider’s server, not just from the user’s browser. If your provider and Grimmory run on the same Docker network, use the internal hostname (e.g., http://grimmory:8080/api/v1/auth/oidc/backchannel-logout).

---

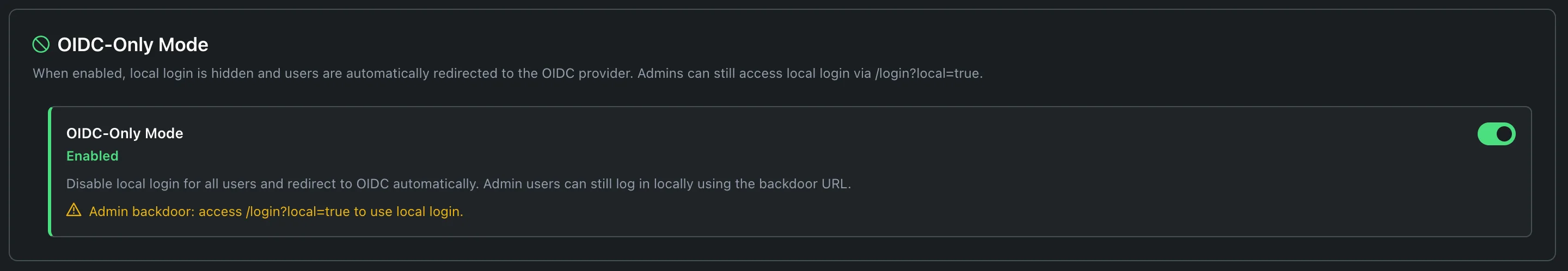

OIDC-Only Mode

If you want all users to authenticate exclusively through your identity provider, with no password-based fallback.

When you enable OIDC-Only Mode:

1. The local login form disappears from the login page
2. Non-admin users visiting /login are automatically redirected to the OIDC provider
3. Users can only authenticate through your identity provider; there is no password fallback

This is ideal when you want your OIDC provider to be the single gatekeeper for access, handling MFA, conditional access policies, and account lifecycle centrally.

Admin Backdoor

Admins always have a way in. Navigate to /login?local=true to reach the local login form, even in OIDC-Only Mode. Bookmark this URL for emergencies.

When Things Go Wrong

If your OIDC provider goes down or a misconfiguration locks everyone out:

Option 1: Use the admin backdoor URL:

https://books.example.com/login?local=true

Option 2: Disable OIDC entirely at the infrastructure level by adding an environment variable to your Docker Compose or system config:

services:
  grimmory:
    environment:
      - FORCE_DISABLE_OIDC=true

Restart Grimmory. OIDC is now completely disabled regardless of database settings. Remove the variable once you’ve fixed the issue.

---

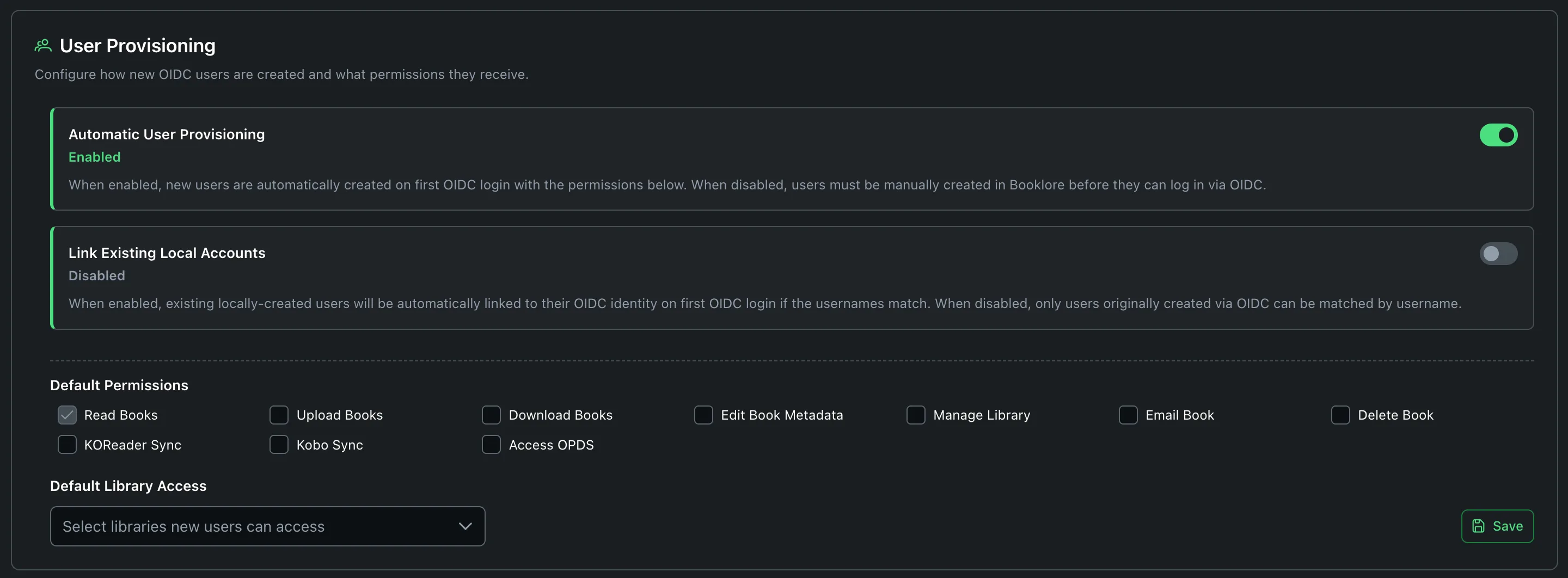

User Provisioning

When someone logs in via OIDC for the first time, what should happen? User provisioning controls whether Grimmory creates the account automatically and what permissions it starts with.

Automatic User Provisioning

Enabled (recommended for most setups): Any user who successfully authenticates through your OIDC provider gets a Grimmory account automatically. No admin action needed. The account is created with the default permissions and library access you configure below.

Disabled: Users must be manually created in Grimmory before they can log in via OIDC. The admin creates the user with a username that exactly matches the OIDC username claim. Good for high-security environments where you want explicit approval for every user.

Link Existing Local Accounts

This setting matters when you’re migrating from local authentication to OIDC and you have existing users who already have reading progress, bookmarks, and shelves.

Enabled: When a user logs in via OIDC and a local account with the same username already exists, Grimmory automatically links the OIDC identity to that account. The user keeps everything: reading progress, bookmarks, shelves, permissions, library access. The account is upgraded to OIDC authentication.

Disabled: Local accounts and OIDC accounts are kept separate. Only accounts originally created through OIDC (or already linked) can be matched.

Migration Strategy

If you’re transitioning an existing Grimmory instance from local auth to OIDC:

1. Enable “Link Existing Local Accounts”
2. Enable OIDC but keep local login available
3. Ask users to log in via OIDC once. Their accounts are automatically linked.
4. Once everyone has migrated, optionally enable OIDC-Only Mode
5. Disable “Link Existing Local Accounts” (no longer needed)

Default Permissions

Choose what newly provisioned users can do. These permissions are applied once when the account is created. You (or group mapping) can change them later.

Available default permissions:

Permission	What it allows
Read Books	View and read books (always granted)
Upload Books	Add new books to libraries
Download Books	Download book files
Edit Book Metadata	Modify book titles, authors, tags, etc.
Manage Library	Create, edit, and organize libraries
Email Book	Send books to email/e-reader
Delete Book	Remove books from libraries
KOReader Sync	Sync reading progress with KOReader devices
Kobo Sync	Sync books and progress with Kobo e-readers
Access OPDS	Browse books via OPDS catalog feeds

Start Minimal

Grant only Read Books and Download Books by default. You can always expand permissions later, but revoking access is harder once users are accustomed to it. Use Group Mapping if different users need different permission sets.

Default Library Access

Select which libraries new users can access. Users only see books in their assigned libraries, so this controls their initial view of your collection. You can assign additional libraries per-user later.

---

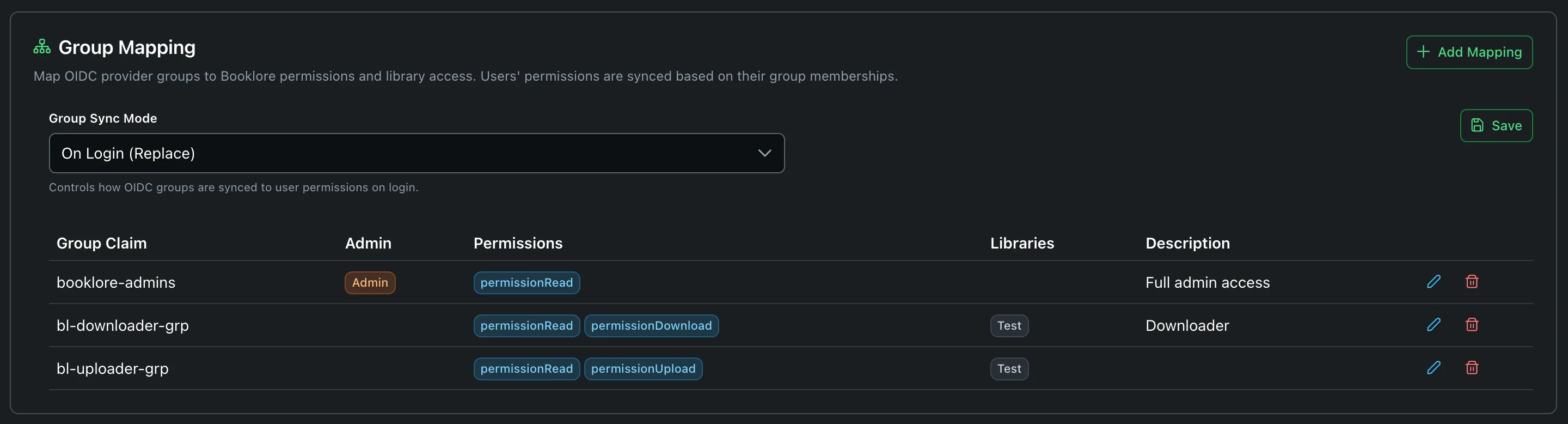

Group Mapping

Group mapping is the most powerful feature of Grimmory’s OIDC integration. It lets you define permission sets in your identity provider using groups, and Grimmory automatically applies the right permissions and library access based on which groups a user belongs to.

Instead of manually configuring each user’s permissions in Grimmory, you manage everything in your identity provider. Move a user to a different group in Authentik or Keycloak, and their Grimmory access updates on next login.

Group Sync Mode

The sync mode determines how group mappings are applied on each login.

Mode	What happens on each login	Best for
Disabled	Nothing. Group mappings exist but aren’t applied.	When you want to define mappings in advance but aren’t ready to use them yet.
On Login (Replace)	The user’s permissions and libraries are completely replaced by what their group mappings define. Any manual changes made in Grimmory are overwritten.	Setups where the identity provider is the single source of truth for access control. Most common choice.
On Login (Additive)	Group-mapped permissions are added on top of existing permissions. Nothing is ever removed.	Mixed environments where some permissions are managed via groups and others are granted manually in Grimmory.

Replace Mode Warning

In Replace mode, if an admin manually grants a user extra permissions in Grimmory, those changes are lost the next time the user logs in via OIDC. All permissions come from group mappings only. Make sure your group mappings cover everything users need before enabling this mode.

Creating Group Mappings

Click Add Mapping to define a new mapping. Each mapping links an OIDC group to a set of Grimmory permissions.

Field	What to enter	Example
Group Claim	The exact group name as it appears in the OIDC token’s groups claim. Case-sensitive.	grimmory-admins
Admin	Check this to grant full admin access to users in this group.
Permissions	Select which permissions to grant.	Read, Download, Upload
Libraries	Select which libraries this group can access.	Main Library, Comics
Description	An optional note for your own reference.	Full admin access

How Merging Works

Users often belong to multiple groups. Grimmory handles this by merging all matching group mappings together:

Example: Sarah belongs to two groups in Authentik: grimmory-readers and grimmory-uploaders.

Group	Permissions	Libraries
grimmory-readers	Read, Download	Fiction, Non-Fiction
grimmory-uploaders	Read, Upload	Fiction, Staging

Sarah receives the union of both mappings:

• Permissions: Read, Download, Upload
• Libraries: Fiction, Non-Fiction, Staging

If any matching group has the Admin flag checked, the user becomes an admin.

Setting Up Groups in Your Provider

For group mapping to work, your OIDC provider must include group names in the token. Here’s how to enable this for common providers:

Authentik

Groups are included automatically in the groups claim. No extra configuration needed. Set the Groups Claim in Grimmory to groups.

Keycloak

Groups are not included by default. You need to add a mapper:

1. Go to your Keycloak realm > Client Scopes > grimmory-dedicated (or your client’s scope)
2. Click Add mapper > By configuration > Group Membership
3. Set:
   • Name: groups
   • Token Claim Name: groups
   • Full group path: OFF (so you get my-group instead of /parent/my-group)
4. Save

Set the Groups Claim in Grimmory to groups.

Authelia

Add groups to your client’s scopes in the Authelia configuration:

identity_providers:
  oidc:
    clients:
      - client_id: grimmory
        scopes:
          - openid
          - profile
          - email
          - groups

Set the Groups Claim in Grimmory to groups.

---

Real-World Examples

Family Setup: Simple SSO, No Groups

A home server with a few family members. You just want everyone to sign in with one click.

What to configure:

• Provider: Pocket ID (lightweight, easy to set up)
• Auto Provisioning: Enabled
• Link Local Accounts: Enabled (if migrating from passwords)
• Default Permissions: Read, Download
• Default Libraries: Family Library
• OIDC-Only Mode: Disabled (keep password login as backup)
• Group Mapping: Disabled (not needed for a few users)

Grimmory settings:

Setting	Value
Provider Name	Pocket ID
Client ID	grimmory
Client Secret	(empty)
Issuer URI	https://pocket-id.home.lan
Scope	openid profile email offline_access

Docker Compose snippet:

services:
  grimmory:
    image: grimmory/grimmory:latest
    ports:
      - "8080:8080"
    volumes:
      - ./data:/data
      - /mnt/books:/books

That’s it. No special environment variables needed. Configure OIDC in the admin UI, and family members can sign in with Pocket ID.

---

Homelab: Multiple Apps, Role-Based Access

A homelab with 10-20 users, several libraries (Fiction, Non-Fiction, Comics, Audiobooks), and different access levels. You manage users centrally in Authentik.

What to configure:

• Provider: Authentik
• Auto Provisioning: Enabled
• Link Local Accounts: Enabled initially, disable after migration
• Default Permissions: Read only (group mapping handles the rest)
• OIDC-Only Mode: Enabled (everyone uses Authentik)
• Group Sync Mode: On Login (Replace)

Group mappings:

Group Claim	Admin	Permissions	Libraries	Description
grimmory-admins	Yes	Read	(all)	Server admins
grimmory-power-users	No	Read, Download, Upload, Edit Metadata, KOReader Sync, Kobo Sync, OPDS	Fiction, Non-Fiction, Comics, Audiobooks	Trusted users with full access
grimmory-readers	No	Read, Download, OPDS	Fiction, Non-Fiction	Regular readers
grimmory-kids	No	Read	Kids Library	Children’s accounts

How it works in practice:

1. You create these groups in Authentik and assign users to them
2. When a new user (let’s say “Alex”) logs into Grimmory for the first time via Authentik, Grimmory auto-creates their account
3. Alex is in the grimmory-readers group, so they get Read + Download + OPDS access to Fiction and Non-Fiction
4. Later, you move Alex to grimmory-power-users in Authentik
5. Next time Alex logs in, Grimmory automatically upgrades their permissions and grants access to Comics and Audiobooks
6. No manual Grimmory admin work needed

---

Locked-Down Setup: Confidential Client, No Auto-Provisioning

A shared server where you want tight control over who gets access. All authentication goes through Keycloak with a confidential client, and users must be pre-approved.

What to configure:

• Provider: Keycloak (confidential client)
• Auto Provisioning: Disabled (users must be pre-approved)
• OIDC-Only Mode: Enabled
• Group Sync Mode: On Login (Replace)
• Session Duration: 8 hours

Grimmory settings:

Setting	Value
Provider Name	Keycloak
Client ID	grimmory-prod
Client Secret	a1b2c3d4-e5f6-7890-abcd-ef1234567890
Issuer URI	https://keycloak.example.com/realms/myrealm
Scope	openid profile email offline_access
Session Duration	8

Group mappings:

Group Claim	Admin	Permissions	Libraries	Description
grimmory-admins	Yes	Read	All	Server admins
grimmory-users	No	Read, Download	Main Library, Shared	Standard user access
grimmory-curators	No	Read, Download, Upload, Edit Metadata, Email Book	Main Library, Shared, Staging	Curators who manage the collection

Docker Compose snippet:

services:
  grimmory:
    image: grimmory/grimmory:latest
    ports:
      - "8080:8080"
    volumes:
      - ./data:/data
      - /mnt/books:/books

New users are created manually in Grimmory by an admin (auto provisioning is off), but their permissions are managed entirely through Keycloak groups.

---

How the Login Flow Works

Understanding what happens behind the scenes helps when troubleshooting. Here’s the complete flow when a user clicks “Sign in with <Provider>”:

1. User clicks the OIDC login button on the Grimmory login page

2. Grimmory generates security parameters: A random state token (stored server-side for CSRF protection), a PKCE code verifier and challenge (stored in the browser’s session storage), and a nonce

3. Browser redirects to the identity provider with the authorization request, including the code challenge, state, nonce, and requested scopes

4. User authenticates with the provider (password, MFA, biometrics, whatever the provider requires)

5. Provider redirects back to Grimmory with an authorization code and the original state

6. Grimmory’s backend exchanges the code for tokens by calling the provider’s token endpoint directly (server-to-server). This is where the code verifier proves the request came from the same session that started the flow. If a client secret is configured, it’s sent here too.

7. Backend validates the ID token: Checks the signature against the provider’s public keys (JWKS), verifies the issuer, audience, expiration, nonce, and other security claims

8. Backend extracts user information from the token claims and optionally the userinfo endpoint

9. User is matched or created in Grimmory (based on provisioning settings)

10. Group mappings are applied (if configured)

11. Grimmory issues its own session tokens and the user is logged in

The entire token exchange happens on the server. The browser never sees the OIDC access token, refresh token, or ID token.

---

Troubleshooting

OIDC Login Button Not Appearing

• OIDC Login must be toggled on in Login Methods
• Provider Name, Client ID, and Issuer URI must all be filled in and saved
• If you just saved settings, refresh the login page

Test Connection Fails

• The Issuer URI must be reachable from the Grimmory server (not from your browser). If running in Docker, use the container network name or ensure the container can reach the external URL.
• Try curling the discovery endpoint from the Grimmory server:

  curl https://auth.example.com/application/o/grimmory/.well-known/openid-configuration

• Check for trailing slash issues. Some providers require a trailing slash, others don’t.

Login Redirects to Provider But Comes Back with an Error

• Redirect URI mismatch: The redirect URI configured in your provider must exactly match what Grimmory generates. Copy it from the Provider Configuration Reference panel. Common mistakes: missing /oauth2-callback path, wrong port, http vs https.
• Scopes not allowed: Make sure openid, profile, email, and offline_access are all enabled in your provider’s client configuration.
• Wrong Client ID or Secret: Double-check these values. A single extra space can cause a failure.
• Check Grimmory application logs (docker logs grimmory) for a specific error message.

User Logs In But Gets “User Not Provisioned”

This means auto-provisioning is disabled and no Grimmory account matches the OIDC username. Either:

• Enable auto-provisioning, or
• Manually create a Grimmory account with a username that exactly matches the OIDC preferred_username claim (case-sensitive)

Group Permissions Not Being Applied

1. Is the Groups Claim configured? Check the Claim Mappings section. The default is groups.
2. Does your provider actually send groups? Not all providers do by default. See the provider-specific instructions above.
3. Is Group Sync Mode enabled? It defaults to Disabled. Set it to On Login (Replace) or On Login (Additive).
4. Do group names match exactly? Group claim values are case-sensitive. Grimmory-Admins is not the same as grimmory-admins. Check what your provider actually sends by inspecting the token (most providers have a token preview feature).

Sessions Not Syncing (User Stays Logged In After Provider Logout)

• Back-channel logout must be configured in your provider. Copy the Back-Channel Logout URI from the reference panel.
• The logout URI must be reachable from the provider’s server, not from the browser. If they’re on the same Docker network, use the internal hostname.
• Not all providers support back-channel logout. If yours doesn’t, users will stay logged in to Grimmory until their session expires naturally.

Locked Out After Enabling OIDC-Only Mode

Two escape hatches:

1. Admin backdoor URL: https://books.example.com/login?local=true
2. Environment variable override: Add FORCE_DISABLE_OIDC=true to your Docker Compose and restart

Auto-Redirect Loop

If OIDC-Only Mode is enabled and the provider keeps bouncing back with errors, Grimmory has built-in loop protection. After 3 failed redirect attempts, it stops auto-redirecting and shows an error message on the login page with a link to the local login form.
